Current position < homepage < product center - Single double-buckle metal hose Single double-buckle metal hose

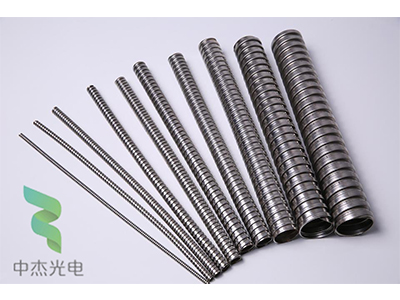

Single buckle metal hose

The hose is characterized by high compressive, tensile, anti-loss, impact resistance and corrosion resistance.

Product features:





1. The hose can be selected in various materials: stainless steel 304 (B), stainless steel 201 (A), galvanized steel (D), copper (T), aluminum (L).

2. The hose is characterized by high compressive, tensile, anti-loss, impact resistance and corrosion resistance.

3. The hose can be easily wound, easy to locate and install.

4. The inner surface of the tube is smooth and excessive, suitable for pulling different kinds of wire.

5. The hose is widely used in various engineering buildings, ships, aviation, electronics, machinery, mining and other industries.

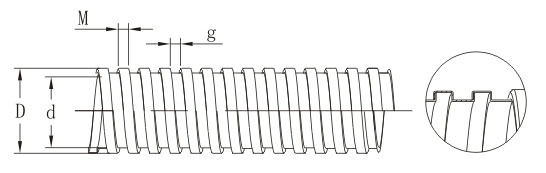

Mould code (inch) d(mm) D(mm) 备注
ZJ030M050S1   3 5
ZJ040M060S1   4 6
ZJ050M070S1   5 7
ZJ060M080S1   6 8
ZJ070M090S1   7 9
ZJ080M100S1   8 10
ZJ095M127S1 1/4 9.5 12.7
ZJ125M157S1 3/8 12.5 15.7
ZJ161M195S1 1/2 16.1 19.5
ZJ208M243S1 3/4 20.8 24.3
ZJ264M300S1 1 26.4 30
ZJ350M400S1 1-1/4 35 40
ZJ400M460S1 1-1/2 40 46
ZJ510M570S1 2 51 57
